BioTek 405 LS

Short product description
Superior performance Microplate Washer

Information

The 405™ LS Microplate Washer is the fifth generation Agilent-BioTek washer, known for superior performance and reliability for washing protocols ranging from gentle cell washing to vigorous ELISAs. The 405 LS has a simple user interface for creation and execution of wash, dispense, aspirate and maintenance protocols within the extensive onboard software. For use under computer control, BioTek’s LHC™ Software is available in standard and 21 CFR Part 11 compliant versions.

The optional BioStack™ is available for walk-away automation of up to 50 microplates.

• Intuitive onboard User Interface or LHC™ pc software
• Magnetic and polystyrene bead assays, conventional ELISAs
• Patented Dual-Action™ manifold
  • Configurations

    Part #
    384-well
    96-well
    Optimized Cell Washing
    4-Buffer Switching
    Ultrasonic Advantage
    Verify™ technology
    Biomagnetic Separation**
    Vacuum Filtration**
    405LSHT
     *
    405LSHTV
     *
    405LSU
    405LSUV

    405LSUS
    405LSUSQ

    405LSUVS
    405LSUVSQ

    405LSR
    405LSRV
    405LSRS
    405LSRSQ
    405LSRVS
    405LSRVSQ

    * 96-well washing available with optional manifold PN 1170010, sold separately
    ** With available accessory module sold separately

    405™ LS Microplate Washer Configurations
    FeatureDesign
    HTFaster 384-well microplate washing192-tube (16 x 12) manifold
    Dual-Action™
    HT Includes Ultrasonic Advantage
    VAutomated Internal 4-Buffer Switching
    SUltrasonic Advantage™Built-in ultrasonic cleaner for manifold self-maintenance
    U96-/384-well microplate washing96-tube (8 x 12) manifold
    Dual-Action™
    R96-well microplate washing96-tube (8 x 12) manifold
    QVerify™ technologyBuilt-in clog detection for dispense and aspirate tubes
  • specifications

    GENERAL
    Microplate types96- and 384-well
    Low profile and standard height
    Solid and filter bottom (option)
    Onboard softwareCreate, edit or run multiple protocols
    Software (computer control)LHC2 pc software
    LHC2 Secure for 21 CFR Part 11 compliance (option)
    SiLA Compliant driver (option)
    SeparationBiomagnetic separation, vacuum filtration (optional)
    ShakingProgrammable up to 60 minutes
    Slow, medium, fast or variable
    SoakingProgrammable up to 60 minutes
    Ultrasonic Advantage™Yes (option)
    Verify™ clog detectionYes (option)
    AutomationBioStack and 3rd party automation compatible
    BioSpa 8 Automated Incubator compatible
    WASHING
    Manifold types96-well washing: 96-tube manifold – straight dispense tubes
    96- and 384-well washing: 96-tube Dual-Action manifold – 20° angled dispense tubes
    384-well washing (fast): 192-tube Dual-Action manifold – 7° angled dispense tubes
    Volume range25 to 3,000 µL/well, in 1 µL increments
    Wash cycles1 – 250
    Buffer/reagent selectionAuto switching (internal) for up to 4 buffers (option)
    Supply bottle4 L or 10 L (optional)
    Dispense precision<3% CV: 300 µL/well (96-well washing)
    <4% CV: 80 µL/well (384-well washing)
    Residual volume<2 µL/well (96- & 384-well plates)
    96-tube manifold for 96 wells; 192-tube for 384 wells
    Wash speed96-wells, 300 µL/well, 3 cycles; <30 seconds
    384-wells,100 µL/well, 3 cycles: <80 seconds
    384-wells, 400 µL/well, 1 cycle: <20 seconds
    Flow ratesHigh flow to low flow
    Optimized rates for cell assays
    SterilizationChemical
    Vacuum filtrationSelectable: Approximate final at 30 seconds:
    Lowest: -38 mmHg
    Low: -113 mmHg
    Medium: -200 mmHg
    High: -390 mmHg
    Highest: -506 mmHg
    Vacuum filtration time range: 5 to 999 seconds
    PHYSICAL CHARACTERISTICS
    Power100 – 240 Volts AC. 50/60 Hz
    Dimensions14″ W x 17″ D x 10″ H
    (35.6 x 43.2 x 25.4 cm)
    WeightWith internal buffer switching – 36 lbs (16.5 kg)
    Without – 30 lbs (13.5 kg)
    REGULATORY
    RegulatoryCE and TUV marked. ROHS compliant. In Vitro Diagnostic use models are available.
  • Software

    The 405 LS has extensive onboard software, accessed through the convenient touchscreen interface. Program all aspects of the system’s wash and maintenance parameters, quickly and easily and store them onboard for routine use.

    LHC
    LHC Software allows computer-based programming of multi-step processes and it is used for integrating BioTek’s multi-mode washer dispensers, washers and dispensers into robotic systems. You can operate the system under computer control via LHC, or create protocols in LHC and download to the instrument for recall and execution.

    LHC Secure software
    LHC Secure software offers features to facilitate compliance to FDA directive 21 CFR Part 11
    with computer control of BioTek’s Multi-Mode Washer Dispensers, Washers and Dispensers.

    LHC SiLA
    LHC SiLA software driver enables BioTek washer and dispenser integration into SiLA compliant automated systems. Includes LHC software for computer control and third party integration of BioTek’s Multi-Mode Washer Dispensers, Washers and Dispensers.

  • Features

    Intuitive onboard User Interface or LHC™ pc software
    The 405 LS has a simple user interface for creation and execution of wash, dispense, aspirate and maintenance protocols within the extensive onboard software. For use under computer control, BioTek’s LHC™ Software is available in standard and 21 CFR Part 11 compliant versions.

    Magnetic and polystyrene bead assays, conventional ELISAs
    The 405 LS is ideal for many standard plate washing and dispensing protocols, but it also automates more complex operations like magnetic and polystyrene bead washing workflows – and it’s Luminex® xMap® approved. Bead washing is available for 96- and 384-well microplates.

    USB flash drive ports for convenient file transfer and storage
    Two USB ports on the 405 TS enable convenient file transfer, storage and operation.

    Patented Dual-Action™ manifold
    Cell-based assays are easily processed with the 405 Select LS, with its angled dispense tubes, extensive aspirate and dispense rates and plate position controls providing optimal conditions for washing even fragile cell layers.

Brochures

Er zijn geen brochures gevonden.

Application notes

Please login to be able to see the application notes.

Er zijn geen application notes gevonden.

Accessories

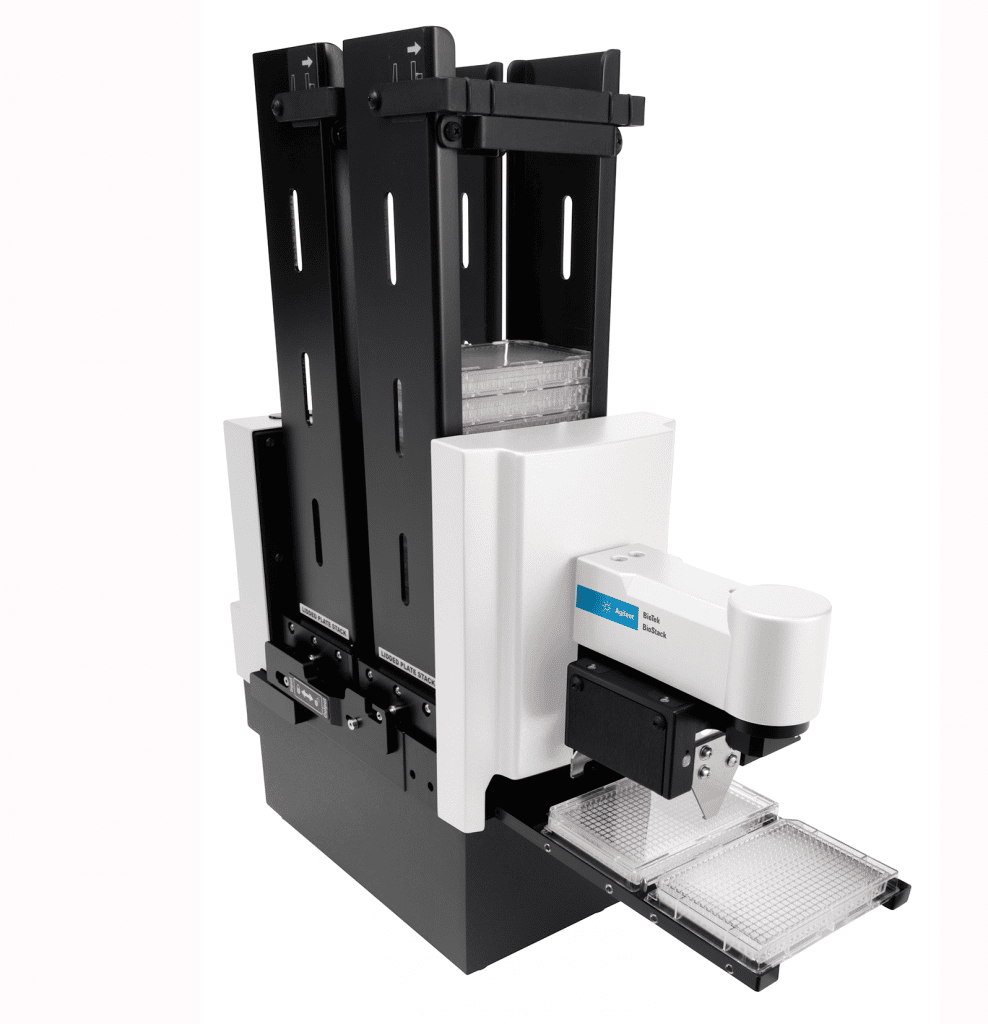

Microplate stacker
