BioTek 800 TS
Information

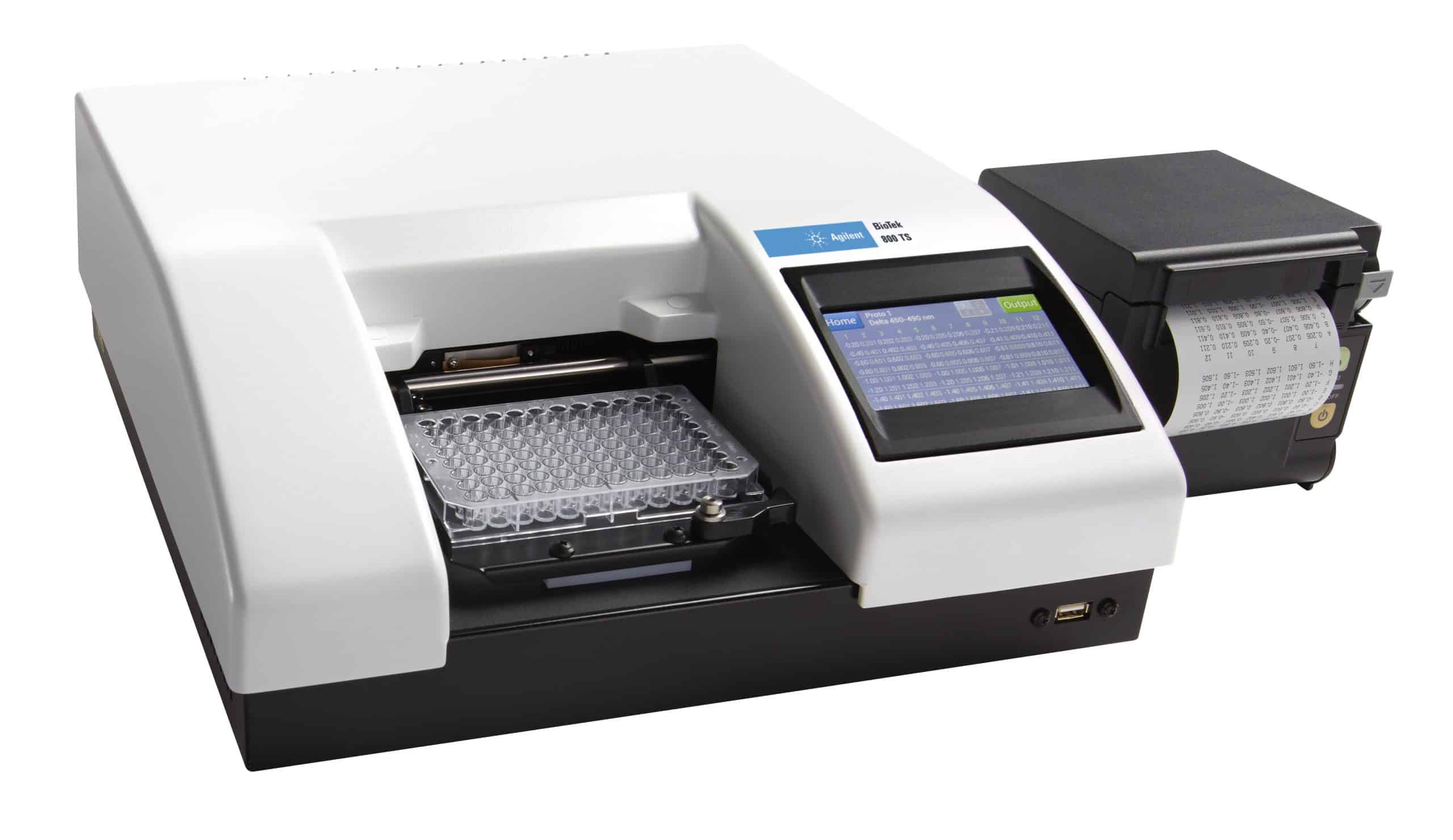

The 800™ TS Absorbance Reader is a high quality microplate reader for assays in 6- to 384-well formats. The color touchscreen provides a visual user interface, making programming fast and intuitive. Applications for the 800 TS extend from endpoint ELISA to temperature sensitive kinetic assays, enabled with Gen5 Software. The 800 TS partners well with the 50™ TS Washer, making a compact, versatile and affordable system to automate many application workflows.
- High quality, high performance at an affordable price
- Application versatility: ELISA, protein and other endpoint assays to kinetics and cell based assays
- Color touchscreen for quick, easy programming and operation
- USB flash drive for convenient data export, Gen5 import for analysis
- High precision and accuracy for quality results
-
Configurations
Part # 6- to 96-well plates 6- to 384-well,
Terasaki plates400 – 750 nm 340 – 750 nm Incubation Shaking 800TS •••800TSI ••••800TSUV •••800TSUVI ••••800TSNB •• -
Specifications
GENERAL Detection modes Absorbance Read methods Endpoint. Kinetic, well area scanning (under computer control) Microplate types 6-, 12-, 24-, 48-, 96-well microplates 384-well microplates, (NB configurations) Maximum plate height 0.9″ (22.86 cm) Temperature control 50 °C (800TSI, 800TSUVI) Shaking Linear (except NB configurations) Software Gen5™ Software for external computer control and data analysis (optional) Onboard software Up to 40 user-programmable protocols Quick menu Create, edit or run protocols Save results to USB thumb drive Printer External USB printer (optional) User interface 4.3″ color LCD touchscreen display ABSORBANCE Light source Tungsten halogen Detector Photodiode Wavelength selection Filters Wavelength range 400 to 750 nm 340 to 750 nm (“UV” configurations) Dynamic range 0 to 4.0 OD (normal & rapid read modes) 0 to 3.0 OD (sweep read mode) Resolution 0.001 OD (standalone mode) 0.0001 OD (via Gen5 control) Filter wheel capacity 5 Filters supplied 405, 450, 490, 630 340, 405, 450, 490, 630 (“UV” configurations) OD accuracy 96-well plate, normal read mode, 405 nm +1.0% +0.010 OD from 0.0 to 2.0 OD OD linearity 96-well plate, normal read mode, 405 nm +1.0% from 0.0 to 2.0 OD +3.0% from 2.0 OD to 3.0 OD OD repeatability 96-well plate, normal read mode, 405 nm +0.5% +0.005 OD from 0.0 to 2.0 OD Reading speed (kinetic) 96 wells, single wavelength Normal read mode: 30 seconds Rapid read mode: 18 seconds Sweep read mode: 11 seconds 96 wells, dual wavelength Normal read mode: 63 seconds PHYSICAL CHARACTERISTICS Connectivity (1) USB Type B for computer control (2) USB Type A for thumb drive and printer Power External 24VDC power supply compatible with 100-240VAC @50-60Hz Power consumption: 40 Watts Dimensions 16.5 x 15 x 7 inches (41.9 x 38.1 x 17.8 cm) Weight 18.5 lbs (8 kg) REGULATORY Regulatory CE and TUV marked. IVD compliant. -
Software
Gen5 software controls all BioTek automated microplate readers, configuring system and data collection parameters, analysis and a variety of reporting and exporting features. One-click export to Excel® makes it fast and easy to export displayed data.
Gen5 Secure software is available for GxP compliant laboratories with features that support 21 CFR Part 11 rules. -
Features
High quality, high performance at an affordable price
The 800 TS delivers high quality, high performance microplate reading at an affordable price. Robust instrument hardware and powerful software, along with unparalleled service and support, make BioTek the #1 plate reader brand.Application versatility: ELISA, protein and other endpoint assays to kinetics and cell based assays
With its 340 to 750 nm wavelength range, the 800 TS is ideal for a variety of applications including ELISA, protein, and other endpoint protocols. Incubation and shaking expand the reach to enzyme kinetics and cell-based assays.Color touchscreen for quick, easy programming and operation
The touchscreen and menu-driven software make protocol creation intuitive and simple. Simple press start to ready, and the 800 TS delivers results quickly and reliably. Protocols and results are saved onboard for instant recall.USB flash drive for convenient data export, Gen5 import for analysis
Many assays require more extensive data analysis and reporting. For convenience, you can export data to a USB flash drive and import it into Gen5 software for advanced data handling and custom reporting.High precision and accuracy for quality results
Although the 800 TS is affordable, it doesn’t compromise on performance. The high quality hardware and optical design assure excellent results for all assays. It’s easy for your lab to verify and qualify performance over time, using the Absorbance Test Plate and Product Qualification Package.
