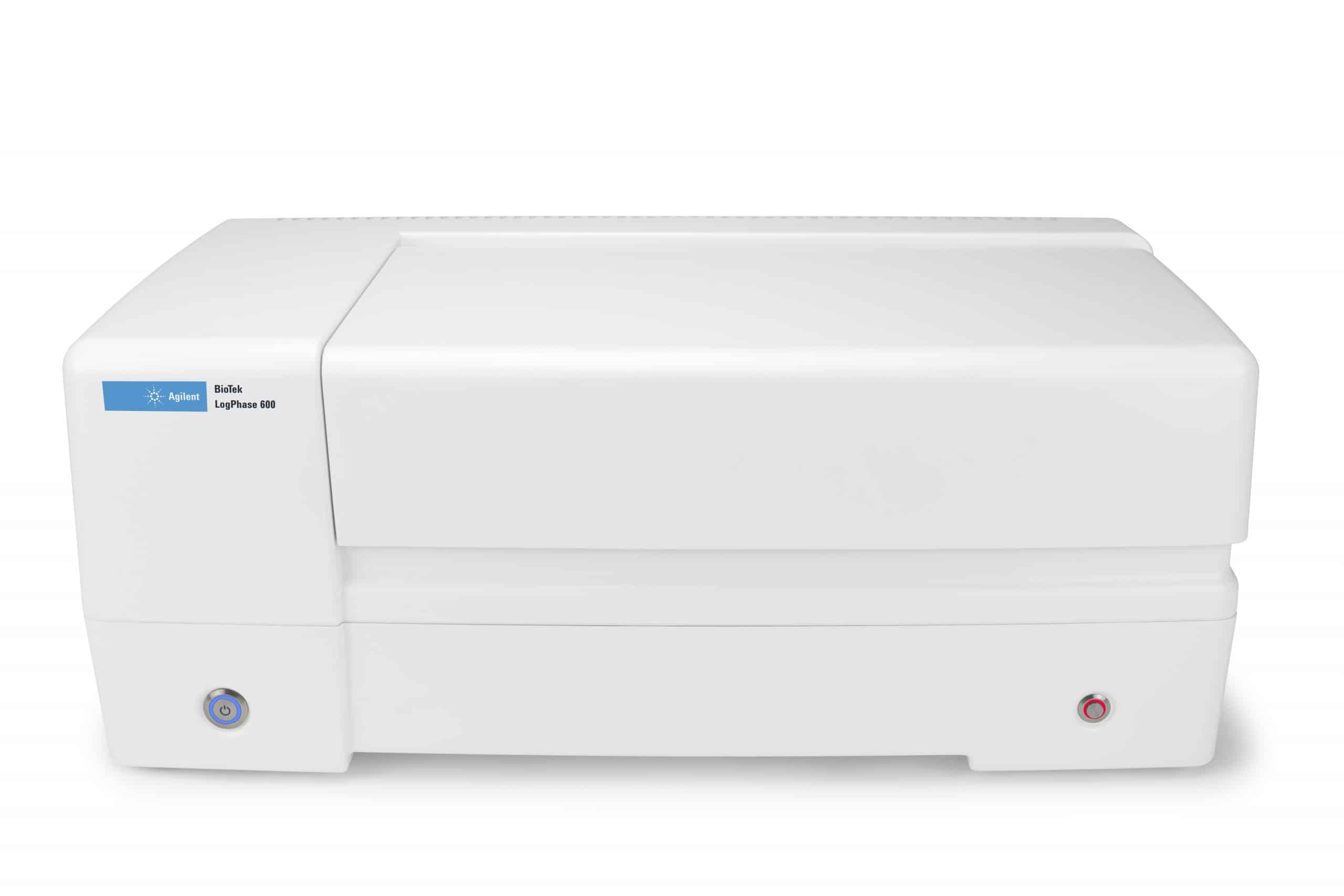

BioTek Logphase 600 Microbiology Reader

Microbiology Reader designed for measuring microbial growth curves in up to four standard 96-well microplates at a time

Cells stay in suspension thanks to the shaking mechanism

Consistent temperature control

Condensation Control

Information

The BioTek LogPhase 600 microbiology reader is designed for measuring microbial growth curves in up to four standard 96-well microplates. This OD600 plate reader features purpose-built robust shaking and consistent temperature controls, which are critical to optimal bacteria and yeast cell growth.

LogPhase 600 is controlled with a software application that provides a simple, yet powerful, user experience. Automated data acquisition and microbiology-focused analyses for all plates create a smooth, efficient workflow.

Features:

The unique 4-plate microplate reader allows you to use one instrument for microbial growth assays in multiple plates, and its compact size saves on bench space
The shaking mechanism is designed specifically for microbial growth assays. Cells stay in suspension for optimal growth and will not settle during long-term kinetic assays. Robust, reliable shaking delivers efficiency to your workflow
Condensation and evaporation control prevents light scatter and reading artifacts in sealed plates. Condensation Control creates a temperature gradient from above to below the plate, to prevent condensation and evaporation, ensuring accurate results
Consistent growth conditions deliver consistent data. The system provides excellent growth conditions for microbial growth assays giving you confidence in your data
The easy-to-use software has analysis tools designed for microbial growth analysis. Multiplate data can be viewed on the screen at the same time, saving processing time. New users can operate the system in minutes with minimal training

Configurations

Part #	Description
LP600	LogPhase 600 4-plate absorbance reader for measuring kinetic growth curves at 600 nm. Features shaking and incubation to 45 °C, and includes LogPhase App for reader control, data collection and analysis.
LP560	LogPhase 600 4-plate absorbance reader for measuring kinetic growth curves at 560 nm. Features shaking and incubation to 45 °C, and includes LogPhase App for reader control, data collection and analysis.
LP580	LogPhase 600 4-plate absorbance reader for measuring kinetic growth curves at 580 nm. Features shaking and incubation to 45 °C, and includes LogPhase App for reader control, data collection and analysis.
LP620	LogPhase 600 4-plate absorbance reader for measuring kinetic growth curves at 620 nm. Features shaking and incubation to 45 °C, and includes LogPhase App for reader control, data collection and analysis.
LP640	LogPhase 600 4-plate absorbance reader for measuring kinetic growth curves at 640 nm. Features shaking and incubation to 45 °C, and includes LogPhase App for reader control, data collection and analysis.

GENERAL
Detection modes	Absorbance
Read methods	Discontinuous kinetic
Microplate types	96-well microplates (with cover seal)
Microplate capacity	4-microplate capacity
Temperature control	Incubation to 45 °C with Condensation Control™
	Variation +0.5 °C at 37 °C
	Plate to plate uniformity +0.5 °C at 37 °C (measured at plate center)
Shaking	Orbital, user-selectable velocity
Software	LogPhase App included; provides reader control, data collection and complete analysis.
ABSORBANCE
Light source	LED
Detector	2 photodiodes (measurement & reference)
Wavelength range	560 nm – 640 nm, configuration dependent
Dynamic range	0 – 4.0 OD
Resolution	0.001 OD
OD accuracy	0.000 to 2.000 OD + 1% + 0.010 OD
OD linearity	0.000 to 2.000 OD + 1% + 0.010 OD
OD repeatability	0.000 to 2.000 OD + 1% + 0.005 OD
Reading speed (kinetic)	Reading speed: <60 sec per plate
	Minimum kinetic interval: 2 min 30 sec (<60 sec read time; 90 sec shake) per plate
PHYSICAL CHARACTERISTICS
Power	24 VDC power supply compatible with 100-240 volts AC @50-60Hz, 250W (minimum)
Dimensions	10.5″ H x 26.0″ W x 16.0″ D (26.7 x 66 x 40.6 cm)
Weight	50 lbs (22.7 kg)
REGULATORY
Regulatory	CE and TUV marked. RoHS compliant.

The LogPhase™ 600 App is specifically designed to control the LogPhase 600 Microbiology Reader to provide high quality microbial growth curves and analysis. The App is included with LogPhase 600 to help get your assays setup and running quickly. • Applications: • Yeast growth assays • Bacterial growth assays • Antimicrobial resistance • Algal research • Biofuels research • Food and beverage testing The LopPhase 600 App controls the LogPhase 600 Microbiology Reader for microbial growth assays Features: Easy-to-use interface and powerful analysis tools View data from 1 to 4 plates at a time.

Only 4-plate microplate reader on the market LogPhase 600 is the only 4-plate microplate reader on the market. You no longer need multiple instruments, multiple PC’s and vast amounts of bench space for your microbial growth assays. Keep your cells in suspension for optimal growth LogPhase 600 has a shaking mechanism designed specifically for microbiological growth assays – its robust and superior shaking ensures your cells will not settle, even during long term kinetic assays. Condensation and evaporation control Condensation on the sealed plates can cause light scatter and reading artifacts. The LogPhase 600 has Condensation Control™ with a temperature gradient from the top to the bottom of the plate, to prevent condensation and evaporation. Consistent growth conditions = consistent data Other systems can develop growth curve artifacts over time due to inconsistent shaking and growth conditions. LogPhase 600 provides the most consistent growth conditions for microbial growth assays on the market. Easy to use and powerful targeted app The LogPhase 600 App provides an easy to use interface with analysis tools designed for microbial growth researchers. New users can be up and running in minutes with very little training. Multi-plate data can be viewed on the screen at the same time. The LogPhase 600 App is specifically designed to control the LogPhase 600 Microbiology Reader to provide high quality microbial growth curves and analysis. The App is included with LogPhase 600 to help get your assays setup and running quickly. The to help get your mset up and running quickly and efficiently.
