BioTek Epoch 2 microplate spectrophotometer
Fully contained microplate spectrophotometer workstation
Filter-free UV-Vis wavelength selection from 200 to 999 nm in 1 nm increments
4-Zone incubation to 65 °C
Compatible with 6- to 384-well plates and cuvettes

Information

Easy to use microplate spectrophotometer

The BioTek Epoch 2 microplate spectrophotometer delivers excellent performance for UV-Vis absorbance measurements. Measurements can be performed in 6- to 384-well microplates, cuvettes, and in microvolume samples with the available Take3 microvolume plate. The broad wavelength range enables applications from nucleic acid and protein quantification in the low UV to microbial growth assays higher wavelengths.

Epoch 2 is easy to use, and the optional touch screen interface makes it simple to choose predefined protocols or to define custom programs. Endpoint, kinetic, spectral scanning and well area scanning modes, plus incubation and shaking enable wide-ranging applications.



Unique features of this microplate spectrophotometer

  • Filter-free UV-Vis wavelength selection from 200 to 999 nm in 1 nm increments. Monochromator-based optics offer a broad wavelength range for applications from nucleic acid and protein quantification to microbial growth assays and more
  • Onboard software on the touch screen model offers end point, kinetic, and spectral scanning in single, dual, and multi-wavelength measurements, enabling versatile applications
  • BioTek Gen5 software enables computer control and expanded data analysis capabilities through its uncluttered user interface, predefined methods, and easy custom experiment creation
  • Compatible with 6- to 384-well plates and cuvettes for assay versatility, the optional cuvette port enables quick and easy 1 cm sample measurements. The system offers versatile choices for assay workflows in a variety of labware
  • 4-Zone incubation to 65 °C and condensation control can meet the requirements of important assays such as biofuels research, food and beverage safety, and kinetic assays to deliver high-quality results
  • Compatible with the Agilent BioTek Take3 microvolume plates to measure up to 48 2 µL samples at a time for direct DNA, RNA, and protein quantification, without additional instrumentation



Automation Compatibility BioSpa
3rd-party
BioStack BenchCel
Environment Control Incubation to 65 °C Condensation Control
Instrument Control Local Touch-screen Computer Software
Monochromator Wavelength Range 200-999 nm (ABS)
Shaking Linear Orbital Double-orbital
Supported Labware 6 to 384-well plates Take3/Take3 Trio Cuvette



How it works

Filter-free UV-Vis wavelength selection from 200 to 999 nm

The monochromator-based optics in Epoch 2 allows selection of wavelengths in 1 nm increments – there is no need to purchase filters! The broad wavelength range enables applications from nucleic acid and protein quantification in the low UV to microbial growth assays at higher wavelengths.

Compatible with 6- to 384-well plates and cuvettes for assay versatility

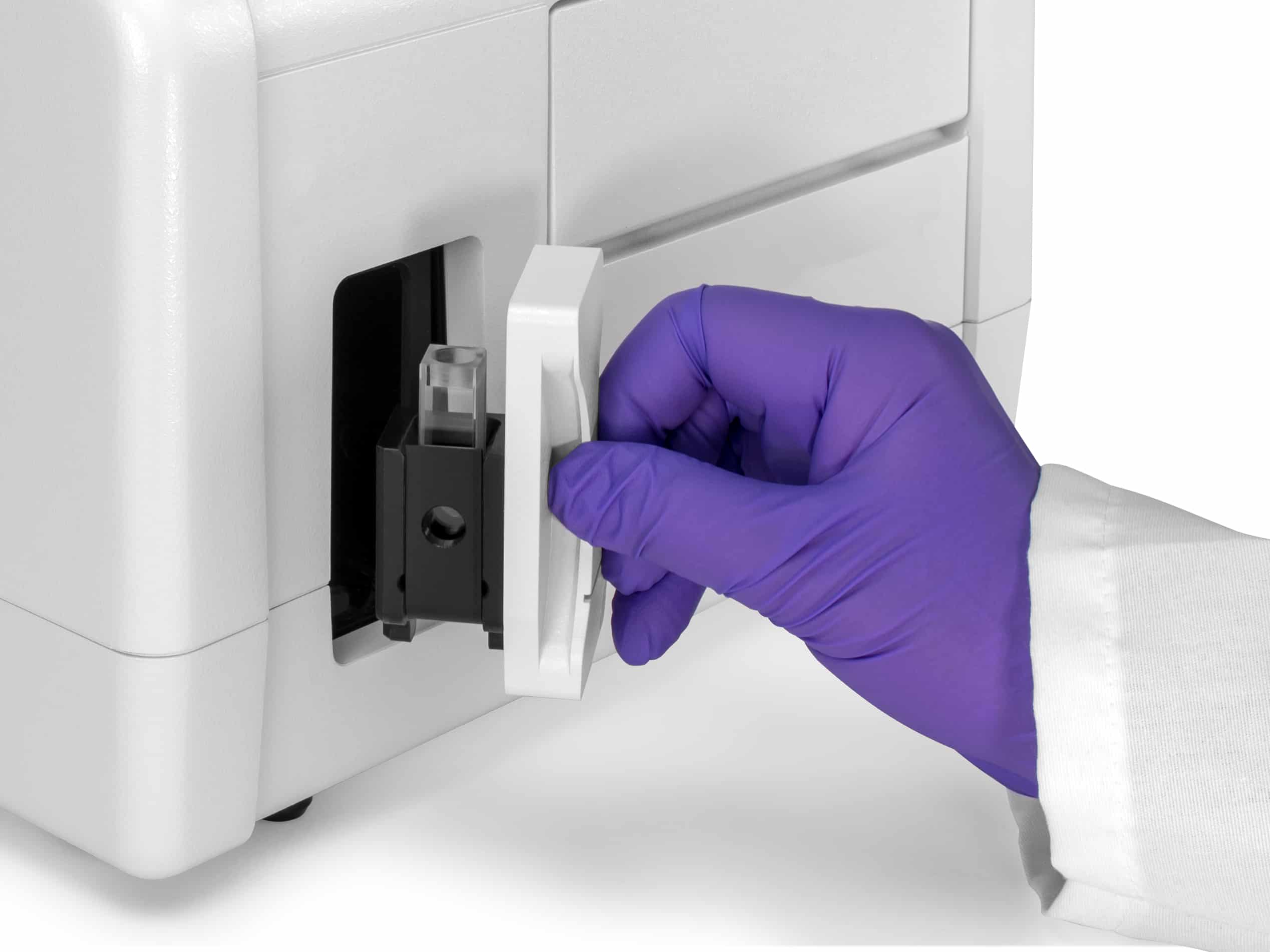

The optional cuvette port enables quick and easy 1 cm sample measurements, making Epoch 2 a versatile choice for assay workflows in a variety of labware.



Microvolume measurements with the Take3 Plate

The Take3 microvolume plates expand Epoch 2 capabilities to measure 2 µL samples for direct DNA, RNA, and protein quantification. Get rapid results for up to 48 samples at a time without additional instrumentation.

Part #
EPOCH2
EPOCH2T
EPOCH2C
EPOCH2TC
Incubation
 •
•
•
•
Shaking
 •
•
•
•
Gen6 Software*
•
•
•
•
Touchscreen
 •
•
Cuvette port
•
•
GENERAL
Detection modes Absorbance
Read methods Endpoint, kinetic, spectral scanning, well area scanning
Microplate types 6- to 384-well plates
Other labware supported Take 3 Micro-Volume Plates
Temperature control 4-Zone™ incubation to 65 °C with Condensation Control
+ 0.2 °C at 37 °C
Shaking Linear, orbital, double orbital
Software Gen6 Data Analysis Software
Gen5 Secure for 21 CFR Part 11 compliance (option)
Automation BioStack and 3rd party automation compatible
BioSpa 8 Automated Incubator compatible
ABSORBANCE
Light source Xenon flash
Detector photodiode
Wavelength selection monochromator
Wavelength range 200 – 999 nm, selectable in 1 nm increments
Monochromator bandwidth 2.9 nm
Dynamic range 0 – 4.0 OD
Resolution 0.0001 OD
Pathlength correction yes
Monochromator wavelength accuracy + 2 nm
Monochromator wavelength repeatability + 0.2 nm
OD accuracy 0 to 2.0 OD + 1% + 0.010
2.0 to 2.5 OD + 3% + 0.010
OD linearity 0 to 2.0 OD + 1% + 0.010
2.0 to 2.5 OD + 3% + 0.010
OD repeatability 0 to 2.0 OD + 1% + 0.005
2.0 to 2.5 OD + 3% + 0.005
Stray light 0.03% at 230 nm
Reading speed (kinetic) 96 wells sweep read: 8 seconds
384 wells sweep read: 14 seconds
PHYSICAL CHARACTERISTICS
Power 100 – 240 Volts AC. 50/60 Hz
Gen6 software controls all BioTek automated microplate readers, configuring system and data collection parameters, analysis and a variety of reporting and exporting features. One-click export to Excel® makes it fast and easy to export displayed data. Gen5 Secure software is available for GxP compliant laboratories with features that support 21 CFR Part 11 rules.
Micro-volume quantification is fast and easy with the Take3™ and Take3 Trio Micro-Volume plates, used in your BioTek microplate reader. Measure multiple 2 µL samples at a time, without diluting and without needing specialized equipment. Pre-programmed nucleic acid and protein protocols in Gen6 make quantification fast and easy.
  • Low volume 2 µL nucleic acid and protein quantification
  • Pre-programmed protocols in Gen6 Software
  • Absorbance and fluorescence detection
  • Easy, wipe-off maintenance
  • Read 2 µL microspots, BioCells or standard cuvettes
BioTek’s robotic instruments can help automate workflows in your laboratory. Many life science workflows benefit from expanded automation, for increased throughput or process efficiency. BioTek offers unique automation solutions that integrate with our microplate washers, dispensers, readers and imagers. BioStack is a compact stacker that offers fast plate exchange options for 50 plates or more, and patented plate de-lidding and re-lidding with BioStack 4 . BioSpa 8 Automated Incubator links BioTek readers or imagers together with washers and dispensers for full workflow automation of up to 8 microplates. Temperature, CO2/O2 and humidity levels are controlled and monitored through the BioSpa software to maintain an ideal environment for cell cultures during all experimental stages.
UV-Vis wavelength selection in 2 µL micro-volume samples, cuvettes and 6- to 384-well plates With a wavelength range of 200 nm to 999 nm, there aren’t many absorbance protocols that Epoch 2 can’t handle. Color touchscreen with available WiFi, Bluetooth and flash drive connectivity Epoch 2 has a built-in 10” touchscreen computer with functionality you’d expect, making it a complete workstation without requiring an external pc. Full Gen6 data analysis onboard or PC for all read modes There’s no comprise in software functionality with Epoch 2 – BioTek’s complete Gen5 software is conveniently available onboard, with unlimited functionality. Advanced incubator design to 65 °C and new Condensation Control™ Some important applications like biofuels research and food & beverage safety and quality call for higher incubation temperatures than typically expected. Epoch 2 can meet these assay requirements. Kinetic assays are optimized with Condensation Control to prevent interference caused by condensation on plate lids. Advanced shaking profiles including linear, orbital and double orbital With three shaking profiles, including programmable frequency and duration, Epoch 2 can manage assays that require very gentle shaking, like some cell-based protocols or intense, vigorous shaking such as yeast or bacterial growth assays ODEasy The ODEasy app for Epoch 2 has a simple, touchscreen-friendly interface for quick absorbance measurements. Data is displayed, ready for printing or exporting.
