Liberty Blue 2.0

Short product description
Synthesize peptides more efficiently than ever before.

Information

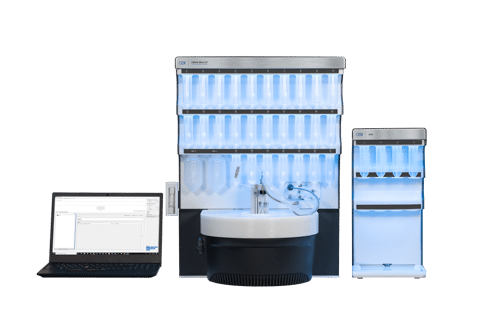

The Liberty Blue™ 2.0 is the exciting next generation of the best-selling peptide synthesizer in the world. Compared to its predecessor, the Liberty Blue 2.0 features the ability to make cleaner and longer peptides with a new level of robustness. The system features a 4-minute cycle time along with a 90% solvent reduction based on High Efficiency Solid Phase Peptide synthesis (HE-SPPS). The Liberty Blue 2.0 features the latest in engineering for fluidic deliveries, true internal temperature feedback control, and software control with 21 CFR Part 11 compliance.



Unique Chemistry
  • CarboMAX™ coupling chemistry
  • Microwave deprotection and coupling
  • Nitrogen Headspace Flushing
Features
  • 4 min cycle time
  • 90% waste reduction
  • Flex-Add™ critical reagent delivery system (patented)
  • True Internal fiber-optic temperature control
  • 0.005 – 5 mmol scale range
  • 27 amino acid positions
  • Integrated RV Camera
  • High-throughput upgrade options (HT4, HT12)

A new level of peptide purity

The Liberty Blue 2.0 provides the ability to make even higher purity peptides than previously possible with the original Liberty Blue system. This is based on advances in the system fluidics, reaction vessel environment, and chemistry methodology.

Barstar
  • Optimized microwave chemistry methodology with ProTide resins
  • Cleanest reaction environment with updated headspace flushing technology
  • More direct optimized flow paths
  • Digitally variable N2 control for optimized bubbling, purging, and draining



Pick the synthesizer that’s best for you

Liberty 2.0 Liberty Blue 2.0 Liberty PRIME 2.0
Cycle Time (at 0.1mmol) 12 minutes 4 minutes 2.5 minutes
System Waste (at 0.1mmol) 32 mL 16 mL 10 mL
Scale Range 0.005 – 5 mmol 0.005 – 5 mmol 0.005 – 5 mmol
Headspace Flushing No Yes Yes
Amino Acid Positions 27 27 30
External Reagent Positions 4 4 5
RV Camera No Yes Yes
LED Visual Feedback No Yes Yes
High-Throughput Options HT4 HT4, HT12 HT4, HT12, HT24
Optional Accessories N/A N/A Full cGMP Compliance Package

The Liberty 2.0 Series feature significant advancements in peptide quality, robustness, and overall flexibility compared to the previous generation.

A major advancement featured on the Liberty Blue 2.0 and Liberty PRIME 2.0 systems is the use of a new Headspace Flushing technology allowing for the synthesis of longer peptides by ensuring cleaner reaction vessel surfaces. Additionally, engineering improvements to the overall system fluidics and software provide increased robustness and flexibility. Learn more about the exciting updates to the most advanced peptide synthesizer line available.

Brochures

View the Liberty 2.0 series brochure

Accessories

Contact

The Netherlands

P: +31 (0)294 760 088
E: [email protected]

Bovenkamp 9
1391 LA Abcoude

Belgium

P: +32 (0)2 334 22 74
E: [email protected]

Steenweg op/Chaussée de Ruisbroek 290b
1620 Drogenbos

© Copyright 2022. All Rights Reserved.

A Beun - De Ronde company

Software

Flexible, Powerful Software

The newly updated software is both flexible and easy to use, making sure nothing stands between you and your synthesis. Customize methods with unique monomers, orthogonal deprotection, branching, cyclizing, and more. Easily check on reactions on the run screen, where the run can be edited, paused, and resumed at any time.
